Circuit Diagrams - TW Receivers and Converters

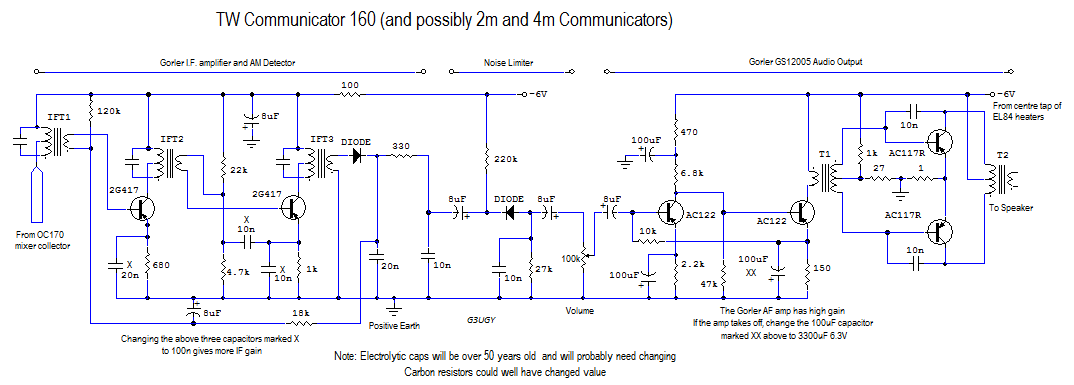

Circuit Diagram - TW Receivers - Gorler IF,NL & AF Modules

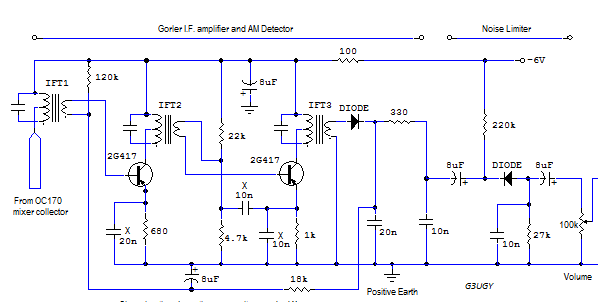

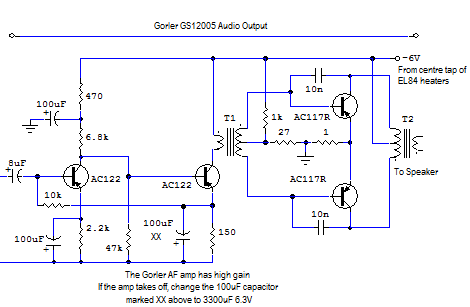

The re-drawn circuit diagrams below have kindly been provided courtesy of John G3UGY. For clarity, the full circuit has been split into two higher resolution sections in the lower two diagrams.
Circuit Diagram - TW VHF Transistor Converter
Circuit Diagram - TW VHF 4m Nuvistor Converter
The sketch below was kindly provided courtesy of Julian G8HCZ.
